Accurate monitoring of environmental parameters is essential in many industries where temperature, humidity, and pressure conditions directly influence operational efficiency and safety. As Temperature, RH and DP Display and Alarm System Manufacturers in Chennai, we provide intelligent monitoring solutions designed to measure and display multiple environmental parameters with precision and reliability.
The Smart Sense TRhDP2400 is a microprocessor-based addressable display unit developed to monitor temperature (T), relative humidity (RH), and differential pressure (DP) in critical environments. By combining advanced sensing technology with clear digital displays and smart communication capabilities, this system helps facility managers maintain stable environmental conditions and respond quickly to any variations.
Intelligent Microprocessor-Based Monitoring System
The TRhDP2400 display unit is constructed on the basis of a 16-bit microcontroller containing a sigma delta ADC circuit of 12-bit, providing correct signal processing and stable performance under measurement conditions. This smart central processing unit enables the gadget to handle the received analog signals effectively and translate them into accurate environmental data.
In order to enhance stability in measurement, the system has input noise filters that guard all the analog inputs against electrical shocks. This is an important property that guarantees the accuracy of the readings that are displayed, even in a situation where electrical noise or interference could be possible.
Clear Multi-Parameter Digital Display

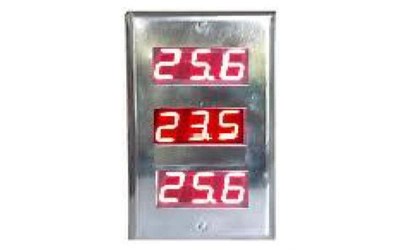

The monitoring unit TRhDP2400 has 1/2 inch 7-segment displays, which indicate the real-time value of the environment in a clear and understandable manner. The display panel is also easy to view, with three key parameters visible:
- Temperature (Deg C)
- Relative Humidity (% RH)
- Differential Pressure (Pa)
These values are shown dynamically, and the technicians and operators can easily monitor the environmental conditions without having to use extra equipment.
The evident design of the unit renders it applicable to installation in the control rooms, monitoring stations, and other critical facilities where real-time monitoring of the environment is needed.
Flexible Signal Compatibility and Integration
The TRhDP2400 display and alarm system is a design that is easy to integrate with other monitoring and automation systems. The device takes in both 0-10 V standard analog input and 4-20 mA analog input; hence, it can be connected to a very diverse variety of industrial sensors.
Along with the analog input, the system is compatible with the MODBUS communication, which allows the system to provide even advanced monitoring and data exchange with the centralized systems. The TRhDP2400 writes temperature, humidity, and differential pressure in MODBUS registers, which can be read by them using a MODBUS RTU master device.
RS485 multi-drop networks are used to communicate with the system, and this is why they can be easily integrated with building automation and industrial monitoring systems.
Alarm and Set Point Configuration
The TRhDP2400 display unit also has a programmable alarm system, which is set to warn the users when the environmental parameters are above safe limits. Using the MODBUS interface, the user is able to type set point values into temperature, humidity, and pressure directly into the MODBUS registers.
Upon reaching the set points or surpassing the set point, the monitored values cause automatic activation of a buzzer alarm, which notifies the technicians of the change in the environment.
- Early warning of unnatural functions of the environment.
- Swift action regarding environmental changes.
- Security of equipment and installations.
- Better performance in critical setting monitoring.
Key Features of TRhDP2400 Display and Alarm
TRhDP2400 Temperature, RH & DP Display and Alarm is an added display comparator having a number of superior features which contribute to the successful monitoring of the environment.
- 16-bit microcontroller with 12-bit sigma delta ADC
- Input noise filters for improved accuracy
- 1/2 inch 7 segment display for clear visibility
- Accepts 0-10V and 4-20mA analog inputs
- MODBUS register support for parameter reading
- RS485 optically isolated communication
- Programmable alarm set points for each parameter
- Buzzer alarm activation when values reach set limits
Applications in Critical Environments
The TRhDP2400 monitoring system has wide applications in facilities where the accurate control of the environment is needed.
- Clean rooms
- AHU rooms
- Critical monitoring rooms
- Medical assistance areas
- Process operation rooms (POR)
There is a need to have proper temperature, humidity, and pressure monitoring in these environments in order to ensure operational safety and product quality.
Reliable Environmental Monitoring Solutions
As trusted TRhDP 2400 Temperature, RH and DP Display and Alarm System Manufacturers in Chennai, we focus on delivering intelligent monitoring systems that provide accurate environmental readings and reliable alarm notifications.
Our solutions are designed for precision, durability, and seamless integration with modern automation systems, making them suitable for critical industrial and commercial applications. The TRhDP2400 display system ensures efficient monitoring and improved environmental control across various facilities. Partner with Kambar Technologies for smart and reliable Display and Alarm technology.
